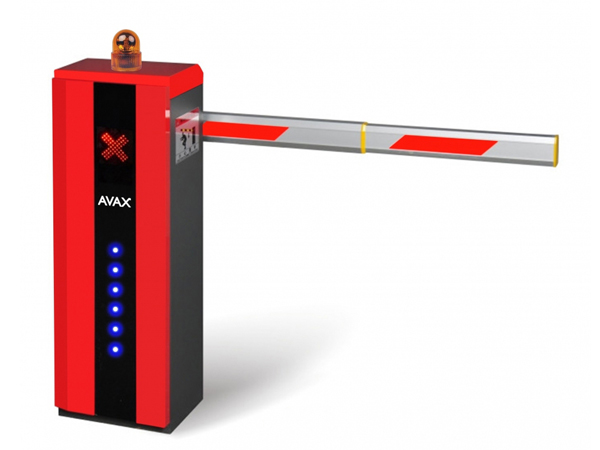

AVAX MC6 LED CAR PARKING BARRIER Avax MC6 LED Parking Barrier arm length is 6 meters. Its body is aluminum alloy and it has an IP65 protection class and electronic powder coating compression technology. This barrier has excellent working performance and is developed for intensive use. Thanks to its strong spring, it eliminates all blind spots to ensure perfect opening.

AVAX MC6 LED Barrier Technical Specifications

Barrier Case: It produced with aluminum alloy body, IP65 protection class, and electronic powder coating compression technology. The leds in the entrance direction are used for lighting and information purposes.
Barrier Motor: Powerful 220V motor-driven energy saving concept and uses the lowest possible rotational speed with proprietary force return rate technology to achieve high-speed opening.
Powerful Mechanical Structure: It has developed mechanical structure for intensive use up to 100% duty cycle and has parts made of aluminum alloy profile protected by two layers of paint.
Excellent Operating Performance: Electronic rotation speed control by the controller ensures precise barrier movement and works quickly, silently and uniformly.
Powerful Spring Structure: The new design spring eliminates all blind spot areas to ensure stable opening and closing. The spring pressure can be adjusted manually.
Power: 220AC/AC110  50/60HZ
Protection Class: IP65
Working Cycles: 5 million cycles
Input Interface: + 12V signal or 100MS pulse signal width
Material: Aluminum alloy profile
Duty Cycle: 100%
Case Dimensions: 35 cm × 29.5 cm× 106 cm
Barrier Weight: 50 kg.
Remote Control Distance: Kontrol30M
Height from ground (from the ground): 83 cm
Arm Speed: 3s / 6s
Maximum Arm Length: 6 meters
