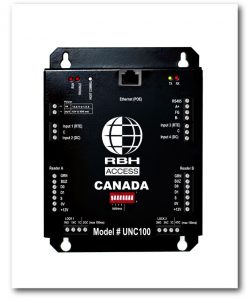

RBH UNC100 Access Control
Universal Network Controller | 2-Door TCP/IP | PoE Supported | Enterprise Security Solution
About RBH UNC100
The RBH UNC100 is a next-generation access control controller designed for enterprise security systems.
It works with AxiomV, AxiomXa, and Integra32 platforms.
It supports 2-door TCP/IP connectivity and delivers high reliability in critical environments.
In addition, it includes a 32-bit encrypted processor for secure data handling.
Moreover, the controller supports RS-485 expansion and integrates easily with third-party systems such as alarms and automation devices.
The UNC100-132 version also supports PoE, which reduces installation cost and improves flexibility.
Key Features
2-Door Control
Manages two access points with high speed response.
PoE Support
Power and data over Ethernet for easy installation.
Secure Encryption
32-bit processor with advanced data encryption.
Expandable System
Supports additional modules and controllers.
Multi Integration
Works with RBH software and third-party systems.
High Reliability
Designed for industrial and enterprise environments.
The RBH UNC100 System delivers advanced access control performance for modern security environments. It integrates easily with enterprise platforms and supports scalable installation for multi-door systems. In addition, the system ensures high reliability, secure communication, and flexible configuration for different project sizes.
General Specifications – RBH UNC100 System
| Category | Details |
|---|---|
| Integra32 Software | • Supports up to 64 Doors (32 two-door controllers) • 1 Year Software Support & Updates • Technical Documentation Included • Training Videos Available |
| INT-UNC100-122M Controller | • 2-Door TCP/IP Universal Network Controller • 2 Reader Ports (Wiegand / OSDP) • 1 Programmable RS-485 Port • 8,000 Card Capacity • 3,000 Event Log Storage • Dedicated Tamper Input • 4 Programmable Inputs • 4 Programmable Outputs |
| ENCL1-PS Enclosure | • Wall Mount Metal Enclosure with Key Lock (2 Keys Included) • Built-in 12VDC @ 2A Regulated Power Supply • Integrated Battery Backup Charging Circuit |
| RBH-M45G-DNB-D Readers | • Wiegand Output Standard • Mullion Mount (Compact Design) • Multi-Technology Support (MIFARE DESFire, BLE, NFC) • Mobile Credential Ready • Suitable for Indoor & Outdoor Use |
