UBio-X Slim

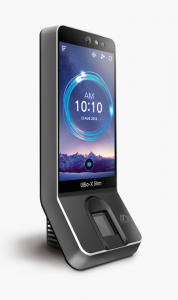

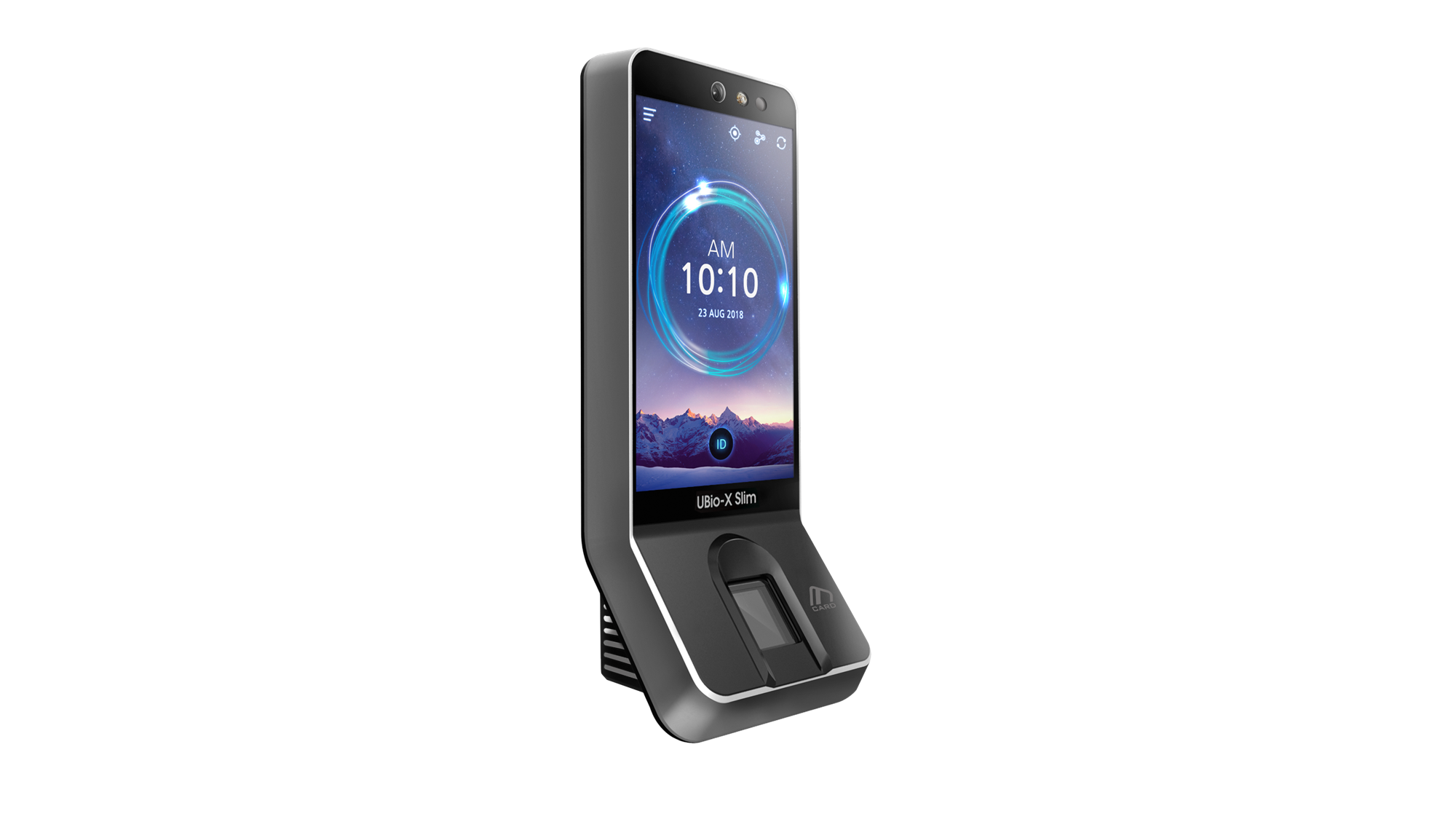

UBio-X Slim is a premium fingerprint recognition terminal designed for advanced access control and time attendance applications. With a slim modern design, ultra-fast matching performance, multi-card support, and enterprise-grade biometric security, the device delivers reliable authentication for high-traffic environments and modern organizations.
Product datasheet
Full technical specs
Advanced Biometric Authentication
UBio-X Slim combines powerful hardware with advanced fingerprint algorithms to provide high-speed and accurate authentication performance. The device is equipped with a 1.4GHz Quad-Core CPU, enhanced live fingerprint detection technology, and high-definition image extraction capabilities for secure identity verification.
In addition, the slim and elegant design integrates perfectly into offices, enterprises, factories, banks, hospitals, educational institutions, and government facilities where modern access control and attendance management systems are required.
Key Features
Technical Specifications
| Specification | Details |
|---|---|
| Authentication Method | Fingerprint / Smart Card / RFID Card |
| CPU | 1.4GHz Quad-Core Cortex A9 |
| RAM | 2GB RAM |
| Flash Memory | 8GB eMMC Flash |
| User Capacity | Up to 500,000 Users |
| Fingerprint Templates | 200,000 Templates (1:N, 1:1) |
| Event Logs | 10,000,000 Logs |
| Image Logs | 50,000 Images |
| Matching Speed | 200,000 Templates in 1 Second |
| Fingerprint Sensor | Optical Sensor |
| Fingerprint Resolution | 500 dpi |
| Platen Area | 16.4 × 19.4 mm |
| LCD Display | 5″ Color TFT Touch LCD |
| Screen Resolution | 480 × 854 |
| Camera | Built-in Camera |
| Communication | TCP/IP, USB, RS232, RS485, Wiegand In/Out |
| Wireless Connectivity | Optional Wi-Fi |
| Supported Cards | 125KHz EM, HID Prox, HID iClass, 13.56MHz Smart Card |
| Keypad | Touch Screen |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | Below 90% RH |
| FRR / FAR | 0.1% / 0.0001% |
| Power Supply | DC 12V ~ 24V |
| Dimensions | 80 × 195.6 × 23.5 mm |
| Applications | Access Control & Time Attendance |
Enterprise Applications

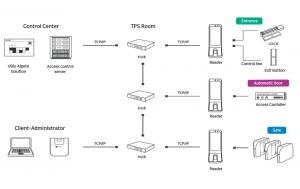

UBio-X Slim is ideal for enterprise security environments requiring high-speed authentication and centralized access control. The device is widely used in commercial buildings, industrial facilities, banks, educational institutions, healthcare organizations, airports, and government projects.
With support for fingerprint authentication, smart card technologies, attendance management, and enterprise integration, the device provides reliable security performance and operational efficiency for modern organizations.
Upgrade Your Smart Biometric Security System
Implement advanced biometric authentication and enterprise-grade security with UBio-X Slim. Improve attendance management, access control efficiency, and identity verification performance with a reliable next-generation biometric solution.
