UBio-X Iris
Prime Iris Recognition Terminal
UBio-X Iris is a high-performance biometric authentication terminal designed for advanced access control and time attendance applications. Featuring cutting-edge iris recognition technology combined with fingerprint authentication, RFID card support, and PIN verification, the device delivers fast, secure, and completely contactless identification for high-security environments.
Powered by an advanced Quad-Core processor and intelligent dual-camera system, UBio-X Iris provides accurate authentication performance even in challenging operational conditions. The terminal is ideal for enterprises, airports, hospitals, government facilities, data centers, and critical infrastructure requiring maximum security and reliability.
Key Features
- Advanced Contactless Iris Recognition
- Iris, Fingerprint, Card & PIN Authentication
- High-Speed Iris Matching Performance

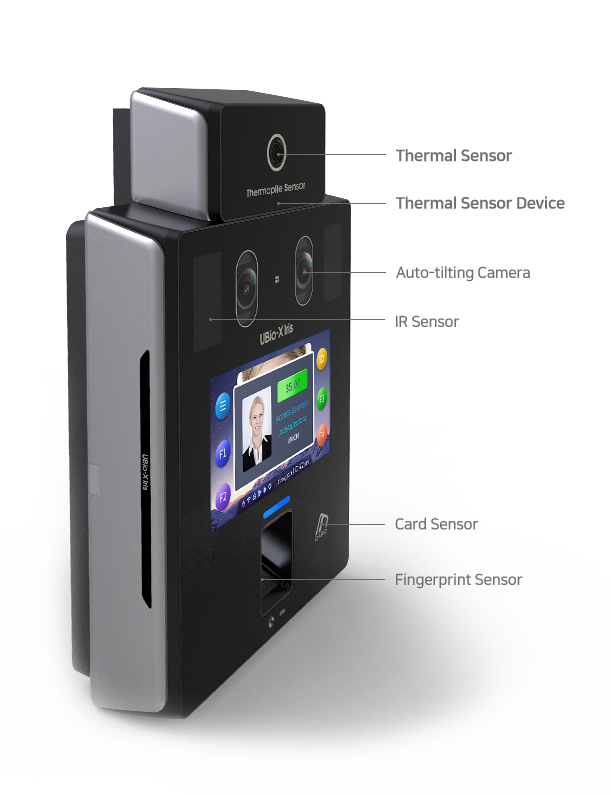

- Intelligent Auto-Tilting Dual Camera
- 5” Color Touch LCD Interface
- FBI PIV & FAP20 Certified Fingerprint Sensor
- Fake Fingerprint Detection Technology
- Android-Based Smart User Interface
- Massive User & Event Log Capacity
- Optional Wi-Fi Connectivity
- Supports Access Control & Time Attendance
- Fast & Hygienic Contactless Authentication
High-Speed Iris Authentication
UBio-X Iris delivers ultra-fast and highly accurate iris authentication using advanced recognition algorithms capable of matching thousands of users within seconds. The contactless authentication process improves both convenience and hygiene, making the device ideal for busy environments and high-security facilities.
The intelligent auto-tilting camera automatically adjusts based on the user’s height and position, ensuring seamless and reliable authentication without requiring manual adjustment.
Multi-Biometric Security Solution
Designed for maximum flexibility and enterprise-level security, UBio-X Iris supports multiple authentication methods:
- Iris Recognition
- Fingerprint Recognition
- RFID Card Authentication
- PIN Verification
The combination of multiple authentication technologies provides enhanced protection against unauthorized access while maintaining fast and user-friendly operation.
Designed for Secure Environments

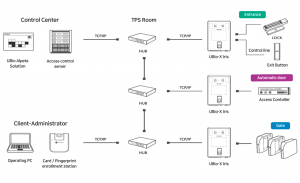

UBio-X Iris is engineered for organizations requiring advanced biometric security and reliable identity verification. The terminal integrates easily with access control systems and workforce management platforms, making it suitable for:
- Corporate Offices
- Airports
- Hospitals
- Government Facilities
- Data Centers
- Industrial Facilities
- Research Centers
- High-Security Areas
Massive Storage Capacity
Built for enterprise-scale deployments, UBio-X Iris supports large user databases and transaction records for efficient long-term operation.
- Up to 200,000 Users
- Up to 10,000,000 Event Logs
- High-Speed Biometric Processing
- Large Internal Memory Capacity
The device ensures stable performance even in environments with high daily authentication traffic.
Specifications
| Model | UBio-X Iris | |||
| Authentication Method | Iris/Fingerprint/Card | |||
| Dust/ Water Resistance | X | |||
| Memory | Max Users | Card | (1:1) / (1:N) | 200,000 |
| Fingerprint (Base on one finger enrollment per user) |
1:1 | 200,000 | ||
| 1:N | 50,000 | |||
| Iris (Base on 2 eyes (L/R) enrollment per user) |
1:1 | 200,000 | ||
| 1:N | 20,000 | |||
| Templates | Fingerprint | 1:1 | 400,000 | |
| 1:N | 100,000 | |||
| MAX Templates per Finger | 2 | |||
| MAX Finger per User | 10 | |||
| Iris | 1:1 | 400,000 | ||
| 1:N | 40,000 | |||
| MAX Templates per Eyes | 2 | |||
| MAX Templates per User | 4 | |||
| Logs | 10,000,000 | |||
| Images | 20,000 | |||
| Communication | with server | TCP/IP | ||
| other | USB | |||
| Wireless LAN(Wi-Fi) | Optional | |||
| Wiegand OUT | O | |||
| RS232 | O | |||
| RS485 | O | |||
| Wiegand IN | O | |||
| Display | LCD | 5”Color Touch | ||
| Backlight | O | |||
| Card | 125khz-EM | O | ||
| HID Prox | O | |||
| HID iclass | O | |||
| 13.56MHz Smart Card | O | |||
| Embedded Camera | Dual | |||
| Keypad | Touch Screen | |||
| Function keys | SOFT | |||
| Door Phone | X | |||
| FP Sensor (Platen Area) | Nscan-FM : 16.6 x 21.6mm | |||
| Resolution | 500dpi | |||
| Dimension(W) X (H) X (D) mm | 160.6 x 214 x 45.4mm | |||
| FRR /FAR | 0.1% / 0.0001% | |||
| Operating Illuminance (lux) | X | |||
| Operating Temperature | -20 ~ 55℃ | |||
| Opertating Software (Server solution) | UBio Alpeta | |||
| Mobile Access Card System(NFC/BLE) | Mobile Phone Specification | iPhone : iOS 10.0 or later / BLE4.2 or later Android : Android 6.0 or later / Supports NFC |
||
| Security / Encryption | Azure Key Vault / AES-256 | |||
| Distance / Range | Under 10cm (It may differ depending on smartphones) | |||
| Server Platform | On-Premise / Cloud | |||
Why Choose UBio-X Iris?
UBio-X Iris combines advanced contactless iris recognition technology with enterprise-grade biometric security in one powerful platform. Its fast authentication speed, intelligent camera system, multi-biometric functionality, and large storage capacity make it an ideal solution for modern access control and time attendance systems requiring maximum security and reliability.
