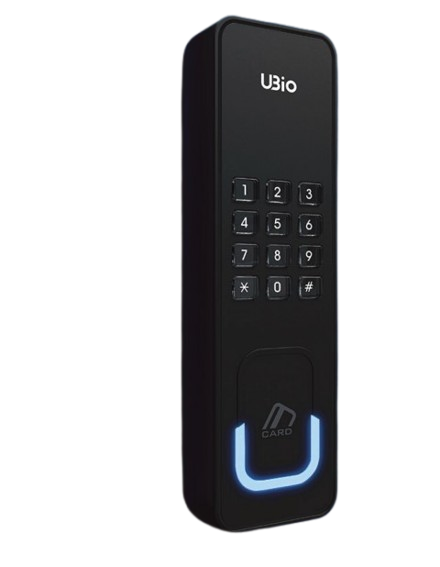

UBio-X Tag Smart Access Device
UBio-X Tag is a compact and powerful access control device designed for secure RFID and mobile authentication. It combines modern smart card technologies with mobile access and keypad entry.
With its rugged waterproof design and high durability, the device is ideal for outdoor installations, industrial environments, and enterprise access control systems.
Product datasheet
Full technical specs
Authentication Methods & Access Control
UBio-X Tag supports flexible authentication methods to meet modern security requirements.

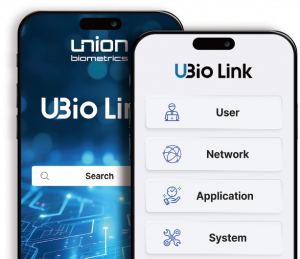

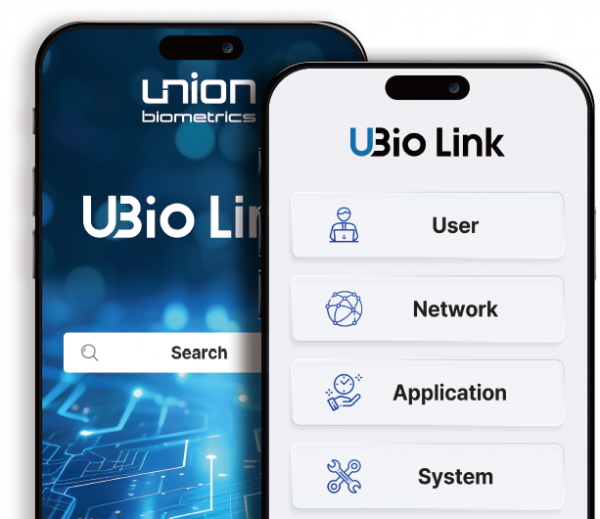

Mobile Access & UBio-Link App
The device integrates with mobile applications using NFC and BLE technologies, allowing users to unlock doors باستخدام الموبايل بسهولة.
This modern approach enhances convenience while maintaining high security standards.
Rugged Design for Outdoor Installations
UBio-X Tag features a compact and durable design with IP65/IP67 waterproof and dustproof protection, making it suitable for harsh environments.
Its IK08 vandal-resistant rating ensures long-term reliability even in exposed installations.
The multi-color LED indicators provide clear visual feedback for user authentication status.
Technical Specifications of UBio-X Tag
| Category | Details |
|---|---|
| Max Users | 400,000 |
| Logs | 1,000,000 |
| Card Module |
13.56MHz Smart Card (ISO14443 A/B, Mifare, Felica, ISO15693) DesFire EV1 / EV2 / EV3 (Optional) SEOS (Optional) 125kHz EM / HID Prox (Optional) |
| Mobile | NFC / BLE |
| Keypad | Physical Keypad |
| Protection | IP65 / IP67, IK08 |
| CPU | ARM Cortex-A7 Dual-core 1.2 GHz |
| Memory | 4GB eMMC + 256MB RAM |
| LED | Multicolor (White, Blue, Red) |
| Operating Temp | -20℃ to +60℃ |
| Humidity | 0% to 95% |
| Weight | 200g |

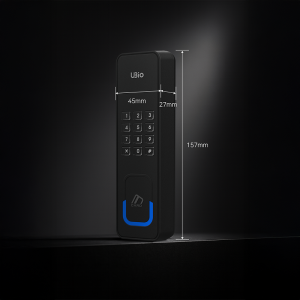

| Dimensions | 45 × 157 × 27 mm |
| Connectivity |
Ethernet 10/100 Mbps RS-485 PoE Supported |
| I/O |
Relay: 2ch Input: 2ch (1 optional) |
