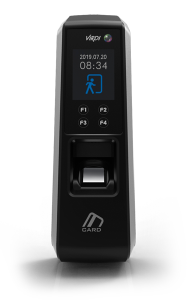

AC-2200

Advanced Smart Access Control Terminal

AC-2200 is a high-performance access control terminal designed for secure and centralized identity management. It supports smart card authentication and delivers stable performance for enterprise environments requiring scalable security systems.

Key Features

Smart Card Authentication
4” Color LCD Display
TCP/IP Network Connectivity
RS232 / RS485 Support
Wiegand Interface
USB Data Transfer
High Security Management
Enterprise Integration Support

Enterprise Access Solution

AC-2200 is designed for organizations that require centralized monitoring and secure access control across multiple entry points with real-time management capabilities.

Security Applications

Corporate Buildings
Industrial Facilities
Government Offices
Commercial Complexes

Storage & Performance

Large User Capacity
High Log Storage
Stable Network Operation

Multi-Device Integration

Why Choose AC-2200?

AC-2200 offers a powerful and scalable access control solution designed for enterprise-level security management with stable performance and easy integration.

Specification

Model				AC2200
Authentication Method				Fingerprint/Card
Dust/ Water Resistance				IP65
Memory	Max Users	Card	(1:1) / (1:N)	10,000
		Fingerprint (Base on one finger enrollment per user)	1:1	10,000
			1:N	5,000
	Templates	Fingerprint	1:1	20,000
			1:N	10,000
			MAX Templates per Finger	2
			MAX Finger per User	10
	Logs			100,000
	Images			10,000
Communication	with server			TCP/IP
	Other			Bluetooth/USB
	Wireless LAN(Wi-Fi)			X
	Wiegand OUT			O
	RS232			X
	RS485			OSDP
	Wiegand IN			O
Display	LCD			1.77″Color LCD
	Backlight			O
Card	125khz-EM			O
	HID Prox			X
	HID iclass			X
	13.56MHz Smart Card			O
Embedded Camera				O
Keypad				X
Function keys				4
Door Phone				X
FP Sensor (Platen Area)				14.8 X 17.9mm
Resolution				500 dpi
Dimension(W) X (H) X (D) mm				58 X 187.9 X 51.6
FRR /FAR				0.1% /0.0001%
Operating Illuminance (lux)				X
Operating Temperature				-20 ~ 60℃
Opertating Software (Server solution)				UNIS
