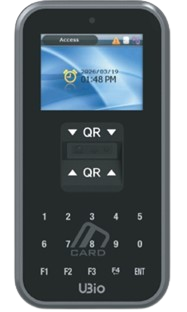

UBio-X QScan Access Control Device
UBio-X QScan is a specialized QR and card access control device designed for fast, simplified, and flexible user authentication. Integrating high-speed 1D/2D QR code reading, RF card verification, and PIN access into a sleek and compact form factor, UBio-X QScan offers the ideal solution for visitor pass management, mobile access, and secure building entrance control.
Equipped with an ARM Cortex-A5 processor, 2.8-inch color LCD, and reliable multi-interface connectivity (TCP/IP, Wiegand, RS485, RS232), UBio-X QScan brings low-power efficiency, reliable illumination, and intuitive visual guidance to your access control infrastructure.
Product datasheet
Full technical specs
Key Features of UBio-X QScan Access Control
UBio-X QScan supports versatile credentials, seamless installation options, and intuitive operation to streamline entrance management for enterprise, commercial, and public facilities.
Fast QR & Barcode Reading
Supported Formats & Reading Distances
- QR Code (15mil): 20mm ~ 60mm reading distance
- Data Matrix (10mil): 20mm ~ 45mm reading distance
- PDF417 (6.7mil): 20mm ~ 45mm reading distance
- Code 39 (5mil): 20mm ~ 60mm reading distance
UBio-X QScan features a highly sensitive optical reader tailored for instant recognition of both mobile screen displays and printed physical credentials. Whether scanning temporary visitor badges or smartphone mobile keys, the terminal ensures rapid authentication with zero lag.
The integrated 3000K soft white LED lighting reduces glare from reflective mobile phone screens, providing optimal scanning stability in diverse light conditions.
Mobile QR Access, Simplified
Modern facility security requires flexible credentialing. UBio-X QScan supports dynamic, one-time QR pass codes, scheduled reservation-based access, and automated privilege management.
By transitioning from physical access cards to digital mobile pass codes, organizations drastically reduce card issuance overhead, improve administrative efficiency, and offer visitors a frictionless check-in experience.
Key Mobile Advantages
- Instant badge delivery via SMS, Email, or Messaging Apps
- Automated expiration for temporary visitors & contractors
- No loss or theft risk compared to physical keycards
- Environmentally friendly & cost-effective operations
Easy System Integration & Multi-Credential Support
Interfaces & Expansion
- Network Protocols: TCP/IP, RS485, RS232
- Access Interface: Wiegand In/Out
- Relay & Control: 2 Lock Relays, 4 Door Monitors
- RF Compatibility: Felica (13.56MHz ISO14443 A/B), EM, HID iClass
Designed to integrate seamlessly into existing security infrastructure, UBio-X QScan supports standard access control protocols such as Wiegand and RS485, as well as standalone network deployment via TCP/IP.
The terminal easily retrofits into existing turnstiles, speed gates, and wall mounts, enabling dual-factor authentication combining QR scans with RF card taps or PIN entries.
Technical Specifications of UBio-X QScan Device
| Category | Item | Specification |
|---|---|---|
| Hardware | CPU | ARM Cortex-A5, 536MHz |
| RAM & ROM | 32MB Nor Flash / 128MB Nand Flash / 128MB DDR | |
| Display | 2.8″ Color LCD | |
| Dimensions | 88 × 175 × 43.5 mm | |
| Capacity | Card / QR (1:N) | 20,000 Users / Credentials |
| Logs | 64,000 Event Logs | |
| QR Specification | QR Code (15mil) | 20mm ~ 60mm Reading Distance |
| Data Matrix (10mil) | 20mm ~ 45mm Reading Distance | |
| PDF417 (6.7mil) | 20mm ~ 45mm Reading Distance | |
| Code 39 (5mil) | 20mm ~ 60mm Reading Distance | |
| Product Specification | Power / Adapter | 12V ~ 24V VDC (Low power QR module ~68mA) |
| RF Option | Felica 13.56MHz ISO14443 A/B (Optional: HID EM / iClass) | |
| Operating Temperature | -20°C ~ 55°C | |
| Interface | Communication | TCP/IP, Wiegand In/Out, RS485, RS232 |
| Relay / Monitor | 2 Lock Relays, 4 Door Monitors |
