AC-1100

 AC-1100

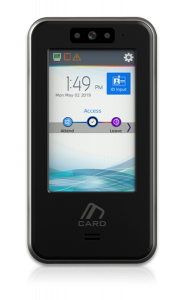

Multi Smart Card Access Control Terminal

AC-1100 is a smart card-based access control terminal designed for secure identity verification and efficient attendance management. It delivers reliable performance for modern organizations that require stable and centralized access control with flexible integration options.

Built with a user-friendly interface and robust communication protocols, AC-1100 ensures smooth operation in corporate environments, offices, and institutional facilities.
AC1100_

Key Features

  • Smart Card Authentication
  • 4” Color LCD Display
  • TCP/IP Network Connectivity
  • RS232 / RS485 Support
  • Wiegand Input/Output
  • USB Data Transfer
  • Optional Wi-Fi Connectivity
  • Built-in Camera Support
  • Access Control & Time Attendance

Smart Card Access Technology

AC-1100 provides fast and secure identity verification using smart card technology. It is designed for environments where reliability, speed, and centralized user management are required for large-scale deployments.



AC1100

Security & Applications

AC-1100 is ideal for:

  • Corporate Offices
  • Government Buildings
  • Industrial Sites
  • Educational Institutions
  • Commercial Facilities

Storage & Capacity

  • Large User Capacity
  • High Event Log Storage
  • Stable Network Performance
  • Enterprise-Level Operation

    Why Choose AC-1100?

    AC-1100 combines simplicity, reliability, and enterprise-level control in a compact smart card terminal. It is a cost-effective solution for organizations looking for stable access control systems.

    Specification

    Model AC1100
    Authentication Method Card
    Dust/ Water Resistance X
    Memory Max Users Card (1:1) / (1:N) 200,000
    Fingerprint
    (Base on one finger enrollment per user)    		 1:1 X
    1:N X
    Face
    (Base on five Face
    enrollment per user)    		 1:1 X
    1:N X
    Iris
    (Base on 2 eyes (L/R)
    enrollment per user)    		 1:1 X
    1:N X
    Logs 1,000,000
    Images 15,000
    Communication with server TCP/IP

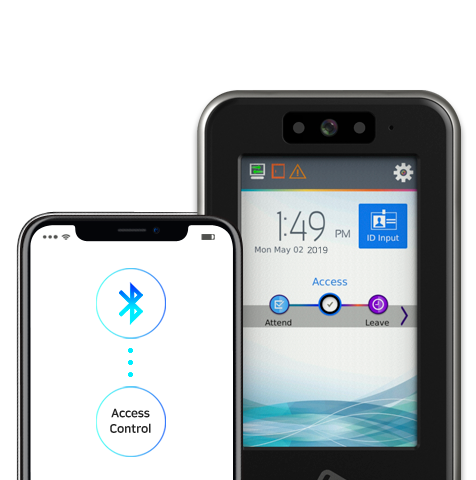

    Other Bluetooth/USB
    Wireless LAN(Wi-Fi) Optional
    Wiegand OUT O
    RS232 O
    RS485 OSDP
    Wiegand IN O
    Display LCD 4″Color Touch
    Backlight O
    Card 125khz-EM O
    HID Prox O
    HID iClass X
    13.56MHz Smart Card O
    Embedded Camera O
    Keypad Touch Screen
    Function keys SOFT
    Door Phone O (Volp)
    FP Sensor (Platen Area) X
    Resolution X
    Dimension(W) X (H) X (D) mm 80 X 153 X 18.2
    FRR /FAR N/A
    Operating Illuminance (lux) X
    Operating Temperature -20 ~ 60℃
    Opertating Software (Server solution) UNIS
