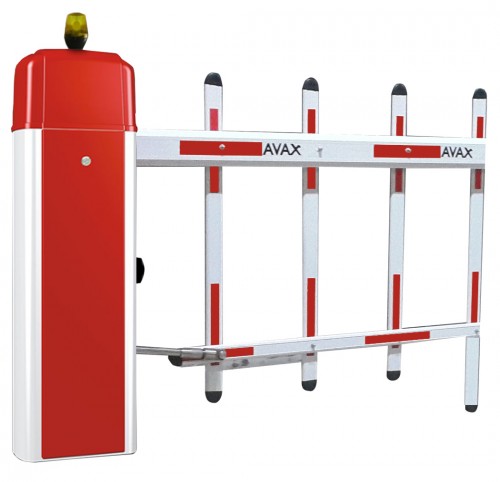

AVAX MN5 Car Barrier Set Contents 1 pcs AVAX MN5 Car Parking Barrier 1 pcs 5 meter fence arm 1 pcs arm sleeper ( bipod ) 1 pair safety photocell 1 pcs flasher lamp 1 pcs remote control receiver 1 pcs remote control AVAX MN5 Technical Specifications Energy: 220VAC 50Hz Power Consumption: 80W 24VAC Body: IP44, Electrostatic painted, time-controlled, keyed lid and impact resistant body. Working Temperature: (-20), (+60) C Dimensions: 30 cm width * 22 cm length * 106 cm height Arm Length: 5 m and intermediate lengths Remote Control: With Button, 50m interaction area, including battery Button Control: Barrier works with single or double button control. At the single button control, after each time the button is pressed, the barrier makes the next move. (It closes if it is open, opens if it is closed.) There are buttons adjusted for opening and closing in double button control. Time Control: If automatic closing is required after a certain period of time from the time the barrier is opened,time control is available which can be adjusted to the desired time . Access Control: Can be used as a dry contact for passing detente , or direct PC control with 3-50 V dc pulse, TTL, CMOS or RS232-RS422-485 . 256 pcs of barrier can be controlled with one PC . It can be easily connected to any access control unit and other peripherals. Sensor Control: If the vehicle stops under the barrier while passing , the downward movement of the arm is blocked by the safety sensor even if it is detented by any control unit to close. When the vehicle completes the transition, the system performs the closing process that is pending in memory. Additional safety sensors are used for cam-ions and trucks. Smart Arm: It has a fence arm. It prevents the objects from passing underneath. The barrier has the ability to feel and respond to an obstacle that touches itself during the up and down movement of the arm. In situations out of the safety sensor, to detect an item underside during the downward movement of the barrier arm and the time of automatic uptake is 0.7 secs. During the upward movement of the barrier arm, the detection of an obstacle in the direction of movement and stopping time is 0,3 sec. It is possible to produce as frangible in case of collision of the arm. System: It is designed as electronic circuit microprocessor controlled. All optional features are available on the electronic circuit. By installing perimeter connections, the system can always be developed without cost. Battery: Optional; Thanks to the optional battery and battery charging unit in the barrier system, the system will continue to operate uninterruptedly with 250 on & off in case of power cut. Warning Lamp: The flasher warning lamp on the device flashes until the arm movement is completed during the up and down movement of the barrier arm. Reflector: Reflector red bands and “STOP” writing that can be seen at night are available on the barriers. Emergency Mode: There is a possibility to control by connecting to security systems (free automatic passing mode in case of emergency, fire alarm). Extra: Depending on customer requirements, the required supply voltage can be provided. Appropriate solutions can be produced according to the need. Custom Design: Original design provides a decorative appearance for indoor and outdoor. Warranty: The system is warranted for two years. Technical Service: Expert ,quality, fast and continuous technical support within whole Turkey, Cyprus, Turkic Republics and the Balkans,. Mounting: Easy and fast mounting thanks to mounting kit.
