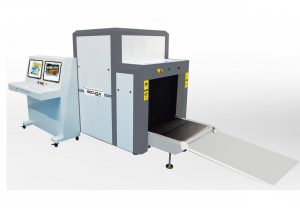

SECUDA 8065 BAGGAGE SCANNER Secuda XRay devices consist of in three main components. The first component is the control panel. The control panel operator is the location of the buttons for controlling the device. The second component is the screen. The screen contains images of the items that have passed through the device. The third and final component is the x-ray unit. Where the X-rays are sent, where the goods are placed and detected, where the carrier band is located. With the Secuda 8065 xray detector, you can quickly and easily detect all cutting and drilling tools, such as guns, knives, and weapons, and get 100% confidence in the areas where they are used. General Description Tunnel Dimension: 800 mm (Width) * 650 mm (Height) Conveyor (Belt) Band Speed: 0.2m / sec. Conveyor (Carrier) Band Maximum Load: 200kg Dose Per Exam: <1.6μGy / hour Resolution: Penetration: 34mm Steel Film Safety: Guaranteed ISO1600 Film X-ray Leakage: <0,1 μGy / h (5 cm away from external body) X-ray Generator Direct Production: Down Angle Production: 80 degrees Anode Voltage: 140KV Anode Power: 0,4mA Cooling / Work time (duty cycle): Oil Cooling / 100% Display System X-ray Sensor: L-shaped photodiode array (multi energetic), 12bit depth. Monitor: High resolution color, LCD compatible, 19 inch Image Processing: Edge enhancement, image enhancement, image lighting, reduction of darkening, image reversion, image rewind Image Grayness Level: 4096 Image Maximum Resolution: 1024 * 1280 pixels. Image Processing: 24bit real time processing. Image Storage: 200,000 images in real time . Zone and Zoom: 1-9 image zones, enlargement of 2, 4, 8, 16 times, full screen continuous observation. Installation Data Working Temperature / Humidity: 0 ℃ – 45 ℃ / 20 – 95% (non-condensing) Storage Temperature / Humidity: -20 ℃ – 60 ℃ / 20 ~ 95% (non-condensing) Operating Power: 220VAC (± 10%) 50 ± 3Hz Power Consumption: 1.0KW (max.) Noise: db <58 SECUDA 8065 BAGGAGE SCANNER
