Everything you need to know about FAAC automation: car park barriers, sliding gates, swing gates, bollards, automatic pedestrian doors, high-speed industrial doors, roller shutters, access control and parking technology.
🗓️ August 2026⏱️ 15+ min read✍️ STC Security Egypt Team
FAAC in Egypt is more than a gate motor. Indeed, FAAC’s portfolio spans vehicle barriers, gate automation, automatic pedestrian entrances, traffic and high-security bollards, access control, parking systems, industrial doors, high-speed doors, garage doors, roller shutters and automation accessories. Consequently, this guide maps the FAAC ecosystem to real applications in Egypt and explains how STC Security can help with specification, supply, installation and after-sales support.
Founded in Italy in 1965, FAAC built its global reputation around gate automation and hydraulic technology. Today, the ecosystem extends far beyond a single gate operator; it includes vehicle barriers, pedestrian entrances, bollards, access control, parking systems, industrial doors and automation accessories.
1965FAAC founded in Italy
60+Years of automation engineering
70+Countries in global presence
2M+Cycles specified for flagship B680H springs
In addition, the official catalogue groups products into gate automation and barriers, automatic doors and entrances, security and access control, automation accessories, parking systems, Simply Connect and roller shutter/awning motors.
FAAC Automatic Barriers & Parking Barriers
Designed to manage vehicle flow effectively, FAAC automatic barriers serve residential compounds, corporate entrances, industrial facilities, toll points and public or private parking areas. For this reason, the current barrier range includes B614, B680H, 620 and 615BPR, with boom lengths and opening speeds selected according to the application.
Choosing a FAAC Barrier for Traffic and Lane Conditions
PRODUCT 01

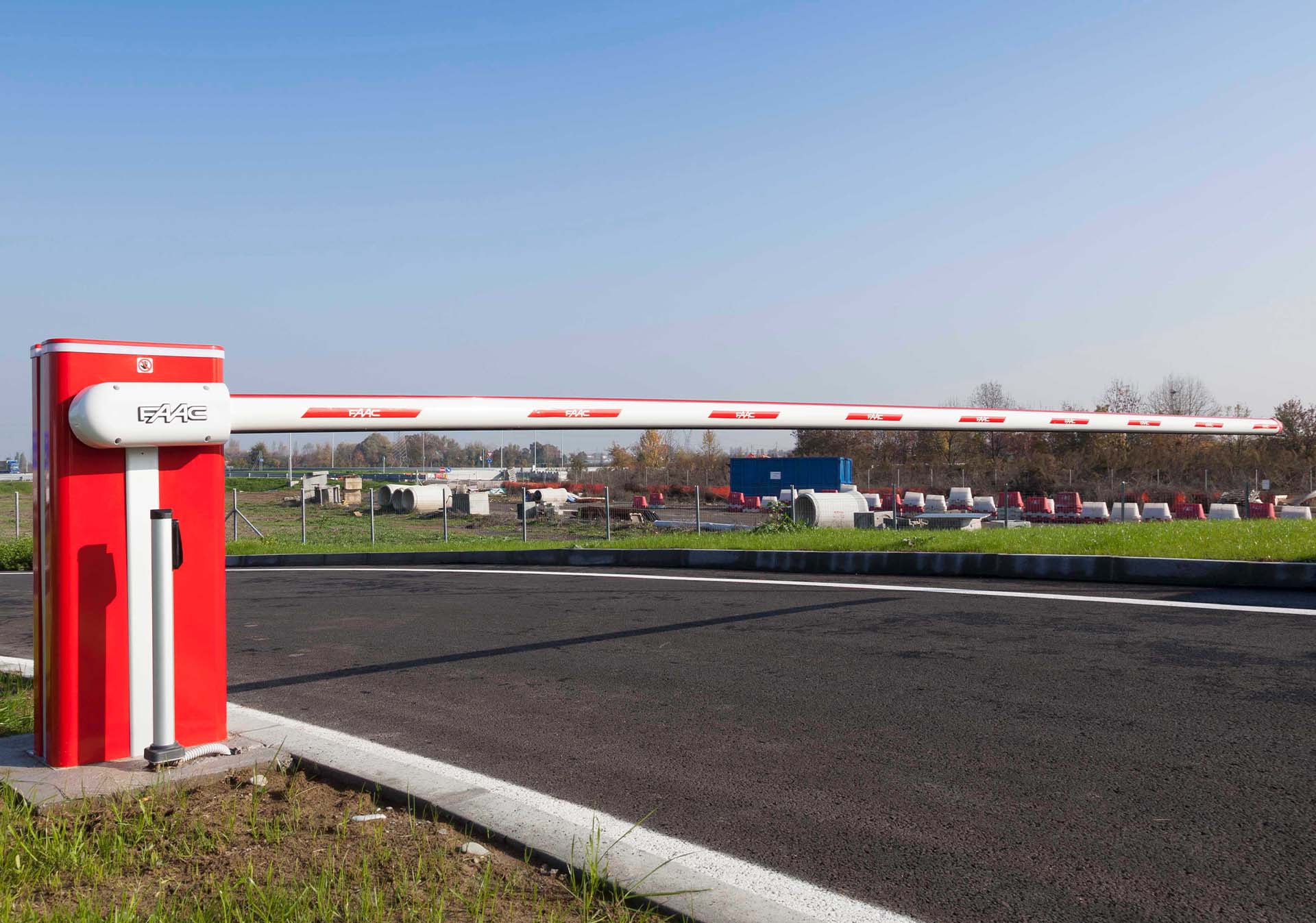

FAAC B680H — 24V Hybrid Automatic Barrier
B680H
Hybrid hydraulic + brushless motor • Intensive / continuous use
The B680H seamlessly combines a brushless motor with robust hydraulic technology. For diverse needs, FAAC specifies boom lengths from 2 to 8 metres, opening times from 1.5 to 6 seconds depending on configuration, and continuous use. Moreover, the system incorporates an absolute encoder for movement control and precise obstacle detection.
Regarding versatility, the B614 is a 24V automatic barrier with an integrated encoder and anti-crushing safety concept. Consequently, it is positioned for vehicle access applications where controlled, safe and efficient traffic management is required.
PRODUCT 03

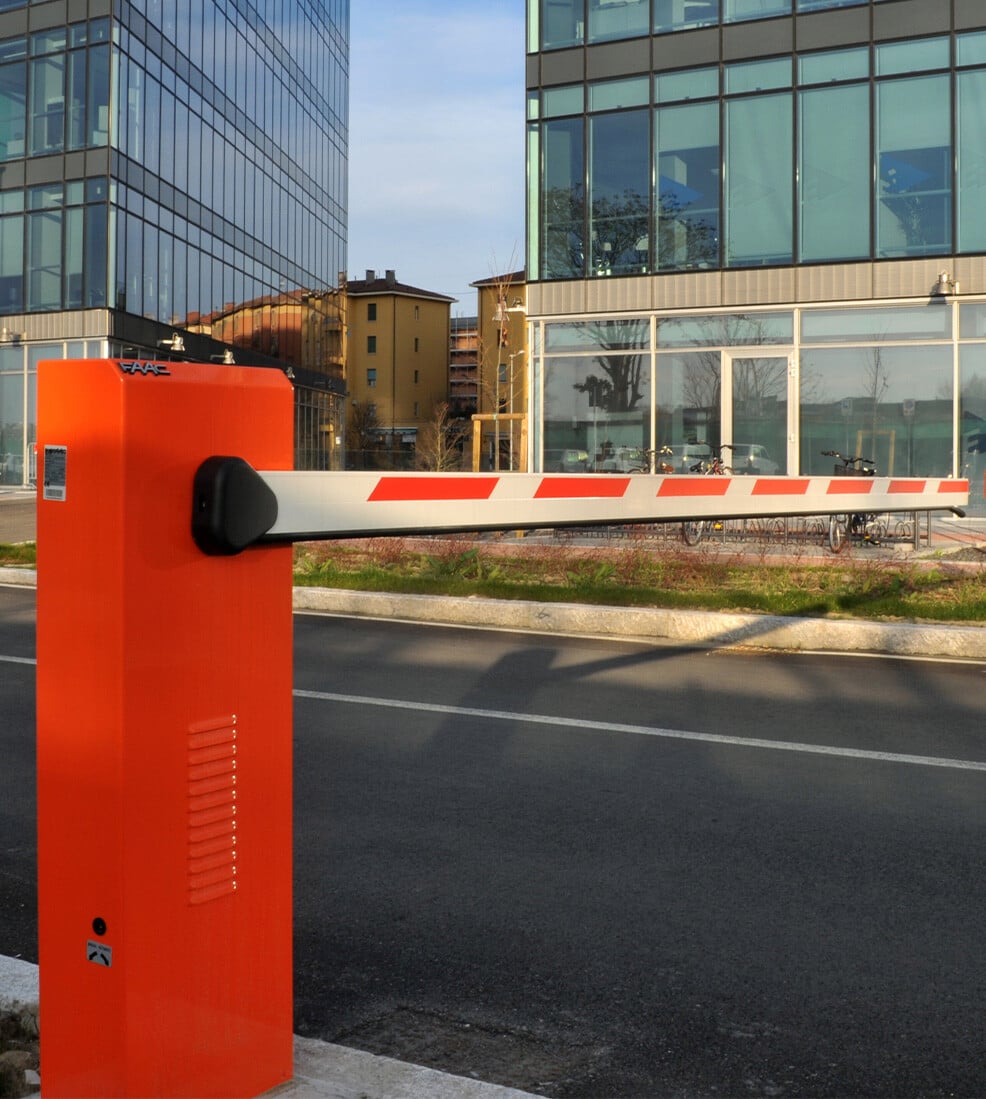

FAAC 620 & 615BPR — Established Barrier Platforms
Additionally, the FAAC 620 is available in configurations for heavy traffic, while the 615BPR serves as a hydraulic barrier for medium transit frequency and small-to-medium private areas. Therefore, the correct model should be selected based on traffic frequency, boom length, speed, lane layout and safety requirements.
FAAC Sliding Gate & Swing Gate Automation
Through advanced engineering, FAAC gate automation can convert many existing sliding or swing gates into automated entrances. To achieve this, the range uses hydraulic, electromechanical and HYbrid approaches depending on gate geometry, leaf weight and frequency of use.
FAAC Sliding Gate Automation
For residential, commercial and industrial entrances, these systems offer robust sliding-gate solutions. Consequently, FAAC highlights gate leaf weight and usage frequency as key selection criteria.
746 C844 C740/741C720C4000I
FAAC Swing Gate Automation
For single- and double-leaf gates, this line provides articulated-arm solutions alongside hydraulic and electromechanical technologies.
392 C390HydraulicHYbrid
SLIDING
FAAC 746 C & 844 C
746 C / 844 C
230V gearmotors • oil-bath technology • continuous use
In terms of performance, the renewed 746 C and 844 C gearmotors include the E781S LC electronic control unit, encoder-based motor control, safety-edge inputs, Bus2Easy and full compatibility with Simply Connect and FDS radio technology. Furthermore, FAAC lists maximum leaf weights of 600 kg for one 746 C configuration and up to 1,800 kg for the 844 C.
24V electromechanical operator with articulated arm
Designed for continuous operation, the 392 C is an electromechanical articulated-arm operator. Specifically, FAAC lists continuous-use capability and a maximum single-leaf width of 0.5–2.5 m with an electric lock. Therefore, its articulated arm proves especially useful where pillars or challenging geometry make a conventional linear actuator less suitable.

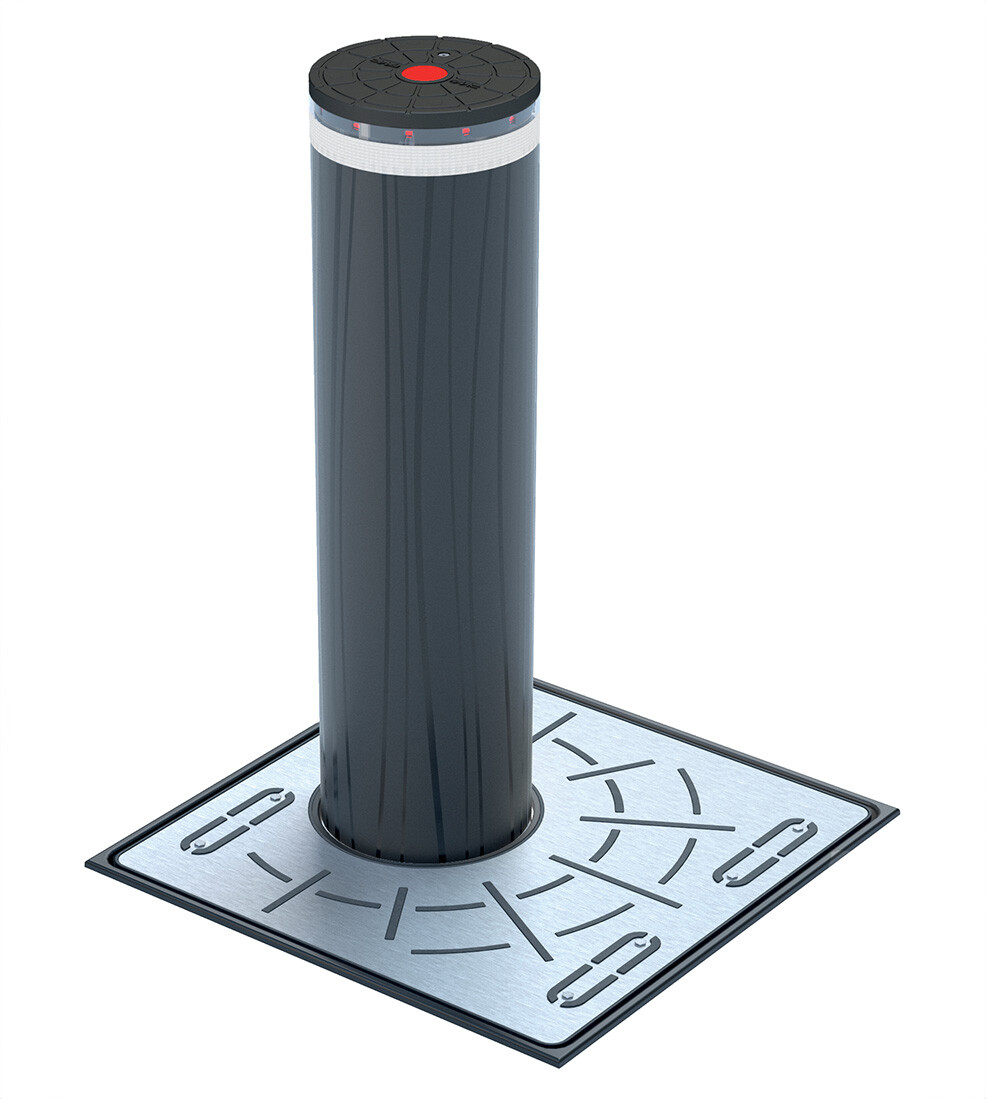

For traffic regulation and perimeter protection, FAAC bollards provide fixed, retractable, removable and high-security solutions. Specifically, the range covers several installation types. In addition, FAAC states that its high-security JS family is performance-certified according to PAS 68, IWA 14-1 and ASTM F2656 standards.
Traffic Bollards
These systems offer retractable and fixed solutions for restricted traffic areas, commercial sites, urban access and perimeter control.
RetractableFixedSemi-automatic
High-Security Bollards
Engineered for sensitive and high-risk sites, these bollards focus on vehicle impact resistance and perimeter security as primary priorities.
PAS 68IWA 14-1ASTM F2656
FAAC Automatic Doors & Entrance Automation
To ensure seamless passage, FAAC’s pedestrian entrance portfolio includes automatic sliding doors, swing doors, revolving doors and specialist hospital/escape-route solutions. Additionally, the company strongly emphasizes smooth transit, safety, energy efficiency and EN16005-compliant automation.
DOOR 01

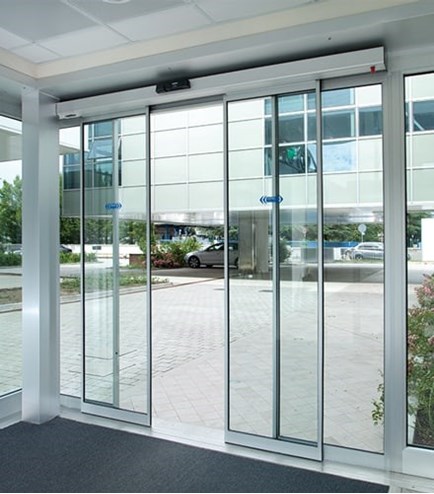

FAAC A1400 — Automatic Sliding Door Automation
A1400
Automatic sliding door automation • Energy Saving
For automatic sliding entrances, the A1400 family is specially designed for demanding public and commercial environments. Moreover, FAAC highlights its Energy Saving technology, which detects walking direction and optimizes opening/closing behavior to significantly reduce unnecessary air dispersion.
For swing-door applications, FAAC offers operators tailored to smooth pedestrian movement, limited-space entrances and demanding environments. Consequently, the flagship A952 is listed as EN16005 compliant and can move heavy doors up to 450 kg during continuous use.
DOOR 03
FAAC AG4000 — Automatic Revolving Door
AG4000
Automatic revolving entrance • 3 or 4 wings
Specifically, the AG4000 is engineered for prestigious and high-traffic entrances such as luxury hotels, corporate offices and healthcare facilities. Furthermore, FAAC lists low standby consumption below 0.5 W, TÜV-certified safety functions, advanced laser sensors, integrated access control options and an emergency breakout system.
Beyond pedestrian entrances, FAAC’s automation portfolio extends to sectional and overhead garage doors, industrial sectional/folding doors and flexible high-speed doors for logistics, manufacturing and technical environments.
Garage Door Automation
These include efficient solutions for sectional and overhead/tilting garage doors in residential and industrial settings, featuring D550 and D600/D700 HS/D1000 families.
D550D600D700 HSD1000
Industrial Door Automation
This range provides automation for large sectional and folding industrial doors, particularly where space, heavy use and manual release requirements matter.
390560SectionalFolding
Flexible High-Speed Doors
Meanwhile, VELO D is specifically designed for demanding industrial environments, warehouses and loading areas with frequent opening and closing cycles.
Up to 2 m/sIndustrialSelf-repair
FAAC VELO D at a glance
Models include folding and roll-up configurations.
Maximum widths/heights depend on model, with configurations reaching 6,000 mm.
Opening speed reaches up to 2 m/s on selected models.
Designed for logistics, manufacturing and technical areas where flow control is critical.
FAAC Roller Shutter & Awning Motors
For shutters and awnings, FAAC provides automation for heavy-duty roller shutters, outdoor awnings and hard-to-reach window shutters. Thus, the current range includes RL200, RH200B, RH240 and RH240B roller shutter gearmotors plus TM2K and N2D shutter automation kits.
FAAC product
Application
Published capability
RL200
Roller shutters
For shutters up to 170 kg; provision for anti-drop safety device.
RH200B
Roller shutters
For shutters up to 280 kg; self-learning limit positions.
RH240
Roller shutters
For shutters up to 180 kg; 76 mm poles / 240 mm spring boxes.
RH240B
Roller shutters
For shutters up to 360 kg; 76 mm poles / 240 mm spring boxes.
N2D KIT
Swing shutters
Universal kit for single/double leaves with safety release and optional automatic obstacle/wind functions.
Beyond vehicle automation, FAAC’s security and access-control ecosystem includes Magnetic motorized turnstiles and pedestrian gates, as well as CoMETA security doors and portals. As a result, these solutions extend the portfolio into controlled pedestrian flow and higher-security entrance protection.
Turnstiles & Speed Gates
This line offers motorized pedestrian gates, turnstiles and speed-gate solutions for controlled, high-throughput pedestrian access.
TurnstilesSpeed GatesPedestrian Gates

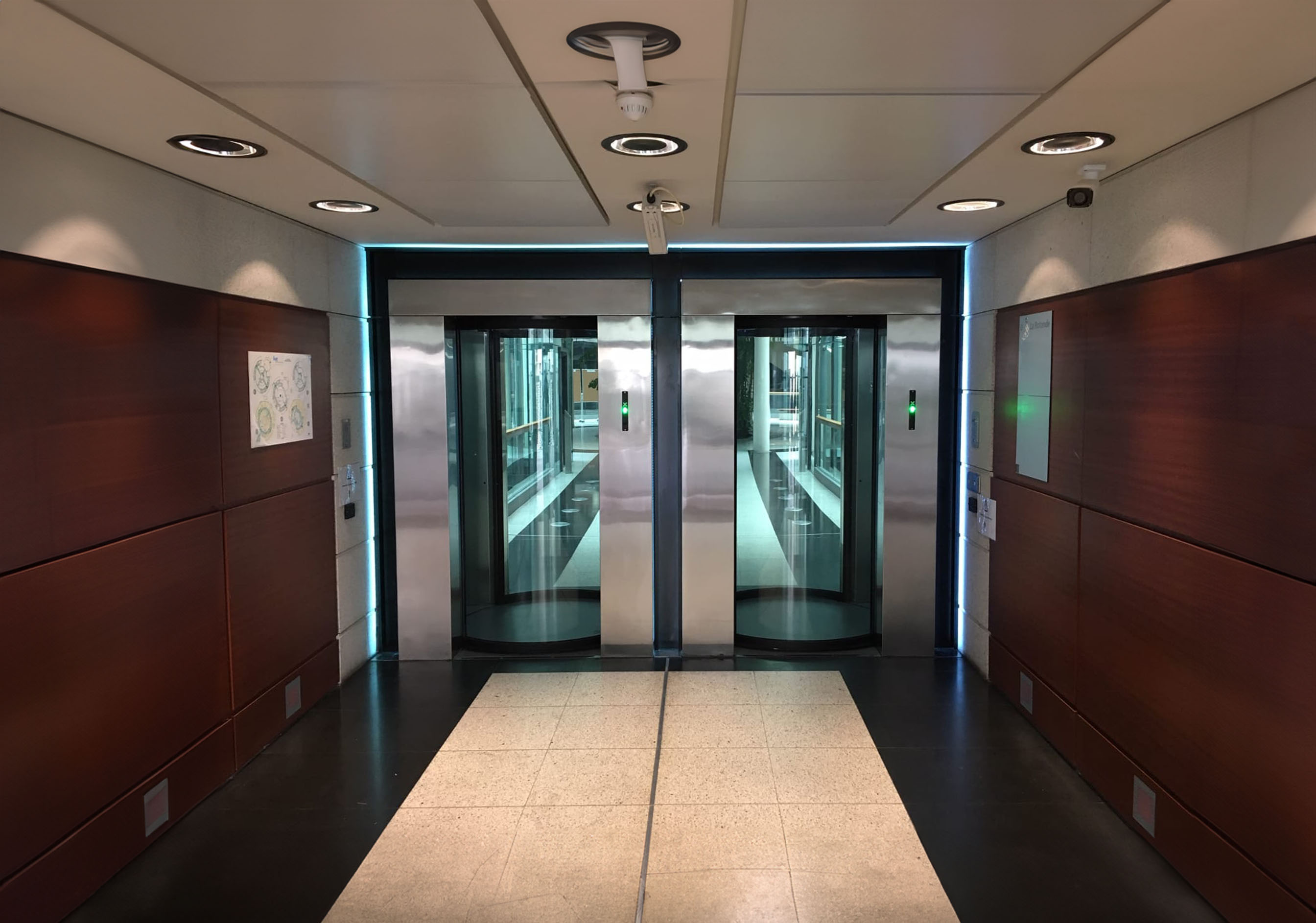

Security Doors & Portals
These are high-security entrance solutions for sensitive areas where access control, anti-intrusion protection and controlled passage must work together.
Security PortalsControlled AccessHigh Security
FAAC KEYDOM — Web-Based Access Control
In addition, KEYDOM acts as FAAC’s plug-and-play access control platform for pedestrian and vehicular access. Specifically, FAAC describes it as fully web-based, scalable and designed to manage employees and visitors across transportation, logistics, tourism, healthcare and public administration.
KEYDOM architecture
Web-based application
Network Controller
Door Controllers
Access-control readers
Pedestrian and vehicle access
Scalable architecture
Integration possibilities
RFID / proximity readers
Long-range vehicle tags
License-plate recognition workflows
Turnstiles and motorized gates
Automatic doors
Vehicle barriers
FAAC Parking Systems & Vehicle Access
For parking projects, FAAC’s product structure includes Parking Systems through HUB Parking Technology. Consequently, a complete solution can combine vehicle identification, access control, barrier automation, payment/revenue control and centralized management.
ExitVehicle detection → validation → barrier control → transaction/event logging.
ManagementCentralized access and parking workflows with reporting and operational control.
FAAC Automation Accessories
Because a reliable automation project depends on more than just the motor, FAAC also offers a comprehensive range of components. Therefore, the accessory portfolio includes transmitters, photocells, flashing lights, TAG readers, keypads, safety-edge radio systems and radar sensors for barriers.

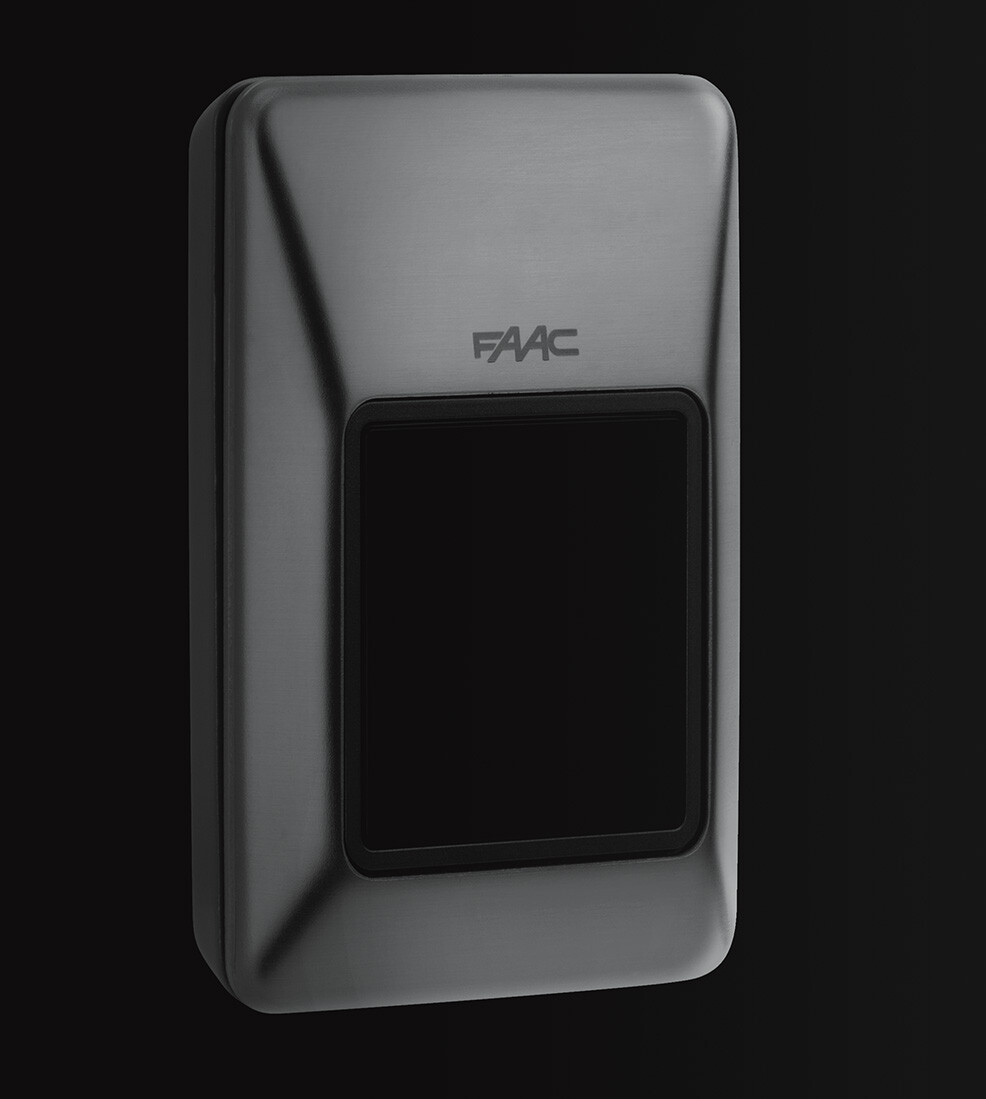

Photocells & Radar Sensors
These act as essential safety and presence detection components for gates, doors and vehicle barriers.
XP20 DXP30EVOLOOPR-LOOP
Transmitters, Readers & Keypads
In addition, these wireless and wired command devices are used to control or trigger FAAC automations and access points.
FDSXTOXTR BXKP
Where FAAC Solutions Fit in Egypt
Across these applications, FAAC’s product ecosystem can support a wide range of facilities. Consequently, the final configuration should be engineered around traffic volume, gate/door dimensions, safety requirements, environmental conditions, security policy and integration requirements.
Threat level, impact requirement and installation depth
Roller shutter
RL/RH motor families
Shutter weight, tube/pole and safety requirements
Frequently Asked Questions About FAAC Egypt
What is FAAC?
FAAC is an Italian automation and access-control company founded in 1965. Its current portfolio covers gates, barriers, automatic doors, bollards, access control, parking systems, industrial doors and accessories.
What is the best FAAC parking barrier?
There is no universal “best” barrier. For intensive continuous traffic, B680H is a major FAAC option; other models such as B614, 620 and 615BPR can be appropriate depending on traffic frequency, boom length, speed and application.
How long can a FAAC B680H boom be?
FAAC specifies B680H boom lengths from 2 to 8 metres, with opening times from 1.5 to 6 seconds depending on the beam configuration.
Is there a line of FAAC sliding gate motors?
Yes. The sliding gate portfolio includes 746 C, 844 C, 740, 741, C720, C4000I and C851 among the current listed families.
Are FAAC swing gate motors available?
Yes. FAAC offers swing gate automation for different gate geometries and usage levels, including articulated-arm and other operator technologies.
Are FAAC automatic hospital doors manufactured?
Yes. FAAC’s automatic pedestrian door portfolio includes specialist solutions for healthcare and hermetic environments, in addition to standard sliding and swing doors.
What is FAAC Keydom?
KEYDOM is FAAC’s web-based access control system for pedestrian and vehicular access, built around network controllers, door controllers, readers and management software.
Can FAAC barriers work with parking systems?
Yes. FAAC’s wider ecosystem includes parking systems through HUB Parking Technology, while barriers and access control provide the physical access layer.
Can STC Security supply and install FAAC in Egypt?
STC Security presents FAAC automation solutions in Egypt and provides project consultation, product selection, supply, installation, technical support and maintenance.
Technical source note: Product names, categories and technical statements are based primarily on the current FAAC website and STC Security’s FAAC pages. Product specifications can vary by configuration, revision and project; final selection should be confirmed against current FAAC technical documentation before quotation or installation.
