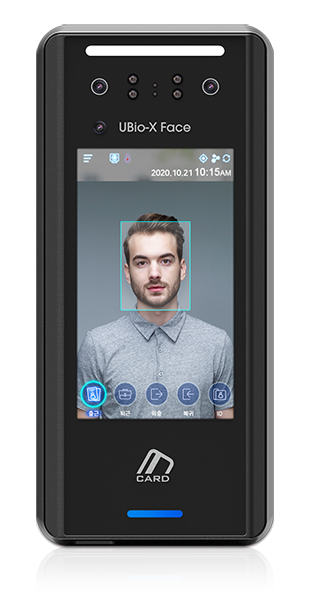

UBio-X Face – Advanced Biometric Face Recognition Terminal
by Union Biometrics
The UBio-X Face is a next-generation contactless biometric device designed to deliver high-speed, secure, and intelligent access control and time attendance management. Developed by the Korean brand Union Biometrics, this terminal combines cutting-edge face recognition technology with multi-authentication capabilities, making it ideal for modern security environments.
Engineered with a powerful deep learning algorithm, the device enables fast and accurate facial recognition from a distance of up to 3 meters, even while users are walking through access points. This walk-through authentication significantly enhances user flow and eliminates bottlenecks at entrances.
The UBio-X Face supports contactless authentication, ensuring a hygienic and seamless experience. It integrates facial recognition with RFID card access and can optionally include temperature detection, making it highly suitable for environments requiring both security and health monitoring.
Key Features
-
Advanced Face Recognition Technology with deep learning algorithm
-
Walk-through authentication with multi-user detection
-
Liveness detection & anti-spoofing against photos, videos, and 3D masks
-
Optional thermal temperature measurement
-
RFID card integration for flexible authentication
-
High-speed processing (<1 second matching)
-
IP65-rated design for indoor and outdoor use
-
IR recognition for low-light environments
-
Secure data encryption & remote user enrollment via mobile
The system is built with robust connectivity options including TCP/IP, RS-485, and Wiegand interfaces, ensuring seamless integration with existing access control systems.
Performance & Capacity
-
Face recognition capacity: up to 20,000 users
-
Card capacity: up to 500,000 users
-
Event logs: up to 10,000,000 records
-
Recognition speed: less than 1 second
-
Operating environment: indoor & outdoor (IP65 certified)
Applications
The UBio-X Face is widely used across multiple sectors, including:
-
Corporate offices and headquarters
-
Government facilities
-
Banks and financial institutions
-
Hospitals and healthcare facilities
-
Industrial sites and factories
-
Educational institutions
Why Choose UBio-X Face?
The UBio-X Face offers a perfect balance between security, speed, and user convenience. Its contactless operation, intelligent anti-spoofing technology, and scalable system integration make it a reliable solution for organizations seeking a future-proof biometric access control system.
Specification
| Authentication Method | Biometric | |
| Dust/ Water Resistance | IP55 | |
| Memory | Max Users | 500,000 |
| Templates | Face : 20,000 (1:1) 20,000 (1:N) Card : 500,000 (1:1) 500,000(1:N) |
|
| Logs | 10,000,000 | |
| Images | 20,000 | |
| Communication | With Server | TCP/IP |
| Other | USB | |
| Wireless LAN(Wi-Fi) | X | |
| Wiegand OUT | O | |
| RS232 | O | |
| RS485 | O | |
| Wiegand IN | O | |
| Display | LCD | 5″Color Touch |
| Backlight | O | |
| Embedded Camera | Dual | |
| Card | 125khz-EM | O |
| HID Prox | O | |
| HID iclass | O | |
| 13.56MHz Smart Card | O | |
| Keypad | Touch Screen | |
| Function keys | SOFT | |
| Door Phone | X | |
| FP Sensor | X | |
| Dimension | (W) X (H) X (D) mm | 96 X 211 X 35.3 |
| FRR /FAR | 0.1% / 0.0001% | |
| Operating Temperature | -20 ~ 60℃ | |
| Operating Software (Server solution) | UBio Alpeta | |
| Mobile Access Card System (NFC/BLE) | Mobile Phone Specification | iPhone : iOS 10.0 or later / BLE4.2 or later Android : Android 6.0 or later / Supports NFC |
| Security / Encryption | Azure Key Vault / AES-128 | |
| Distance / Range | Under 10cm (It may differ depending on smartphones) | |
| Server Platform | On-Premise / Cloud | |
